Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks

  • 1
  • 2

Brand Name : Suntech

Model Number : SHCN

Certification : ISO 9001

Place of Origin : Fenghua,Ningbo,China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T,Western Union

Supply Ability : 500pcs per month

Delivery Time : 9-15 days after payment

Packaging Details : Standard export package or as your requirement

Type : Skyward Stringing Block

Model : SHCN80X50A,SHCN120X58A

Application : Transmission Line Stringing Block

Sheave : Nylon or Aluminum

Rated Load : 5kn and 20kn

Diameter : 80mm and 120mm

Contact Now

Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks

Uses:Transmission Line Tower 0.5T And 2T Crossarm- Mounted Stringing Blocks

The cross arm mounted stringing blocks are used for installation small conductors on transmission line.

Model SHC rated load has 0.5T and 2T, breaking load 5KN, 20KN, suitable for conductor range size 10mm2,40mm2. the material can be aluminum or nylon.

Crossarm-mounted Stringing Block Data

Model Rated Load (KN) Breaking Load (KN) Conductor Size Range (mm²) O. D. of Sheave (mm) Weight (kg) Material Remark
10231 SHC-0.5 5 10 ACSR 25-120 Φ80 1.5 Aluminum
10232 SHC-2 20 40 ACSR 35-240 Φ120 3
10233 SHCN-0.5 5 10 ACSR 25-120 Φ80 1.1 Nylon
10234 SHCN-2 20 40 ACSR 35-240 Φ120 2.3

Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing BlocksTransmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks

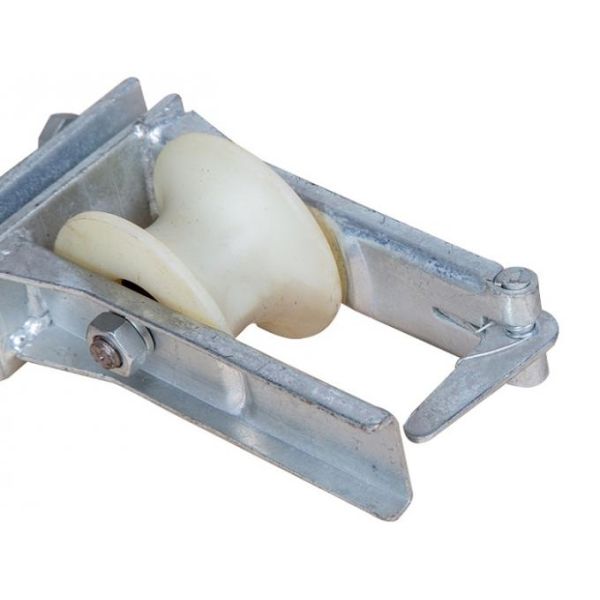

Crossarm mounted stringing block are made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene
ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied
with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete
conductive sheaves can be supplied on demand.
Ordernumber Model Applicableconductor Ratedload (kN) Outsidediameterofsheave (mm) Weight(kg) Features
10231 SHC-80×50A LGJ120 5 Φ80 1.5
Aluminous
Wheel
10232 SHC-80×50A LGJ240 20 Φ120 3
10233 SHCN-80×50A LGJ120 5 Φ80 1.1 Nylonsheave
10234 SHCN-120×50A LGJ240 20 Φ120 2.3

Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
