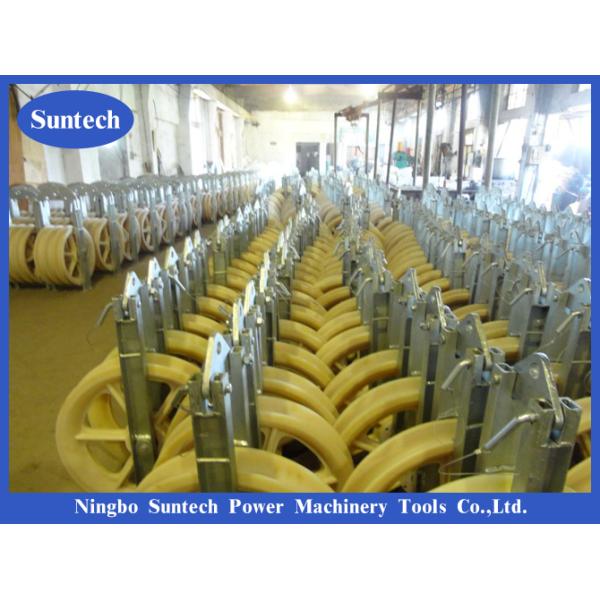

Overhead Line Single Nylon Wheel Transmission Conductor Stringing Blocks

  • 1
  • 2
  • 3

Brand Name : Suntech

Model Number : SHDN,SHD

Certification : ISO,CE

Place of Origin : Ningbo,China

MOQ : 1 SET

Price : Get the newest price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 sets per Month

Delivery Time : 7-15DAYS AFTER DEPOSIT

Packaging Details : Exported Cartons

Name : Stringing Blocks

Material : Nylon Sheave or Steel Sheave

Type : Single Sheave Stringing Block

Size : Customized

Contact Now

Overhead Line Single Nylon Wheel Transmission Conductor Stringing Blocks

Cable pulley block is often laid in open trenched where the road and ground conditions result in the cable route having a number of curves.

With the cable's own weight and the high tensions involved the cable cannot be fed cleanly.

The pulley block from Suntech Power is made of aluminium or nylon, frame is high grade galvanized steel or copper. The sturdy and robust steel

frames are completely galvanized and guarantee a long working life even under extreme conditions.

Model Rated load (KN) Applicable Conductor (mm²) Weight (kg) Features
SHD120×30 5 LGJ25-70 1.8 Aluminum sheave
SHD160×40 10 LGJ95-120 3.1
SHD200×40 15 LGJ150-240 4
SHD200×60 15 LGJ150-240 4.6
SHD250×40 20 LGJ150-240 4.6
SHD250×60 20 LGJ300-400 6
SHD270×60 20 LGJ300-400 7
SHD320×60 30 LGJ300-400 9.5
SHD400×80 30 LGJ400-500 15

Stringing pulley block features

1. To put aluminum wire, steel core aluminum strandes wire, insulated wire delay in pole and tower
2. Cable roller wheel groove can be through a lamp pipe, aluminum casing, connector etc.
3. The material is divided into aluminum alloy and MC nylon.
4. Pulley pendant divided into joint plate and hook type.

Remarks:

1. The product is classified as hook style, clevis, etc. it must be explained clearly in writing when ordering, exceptional specification can be customized.

2. The meading of model is outside diameter of sheave × with of sheave (mm)

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
